Rain Water Alarm System

Rain Water Alarm System – Detect Rain Automatically Using Simple Electronics

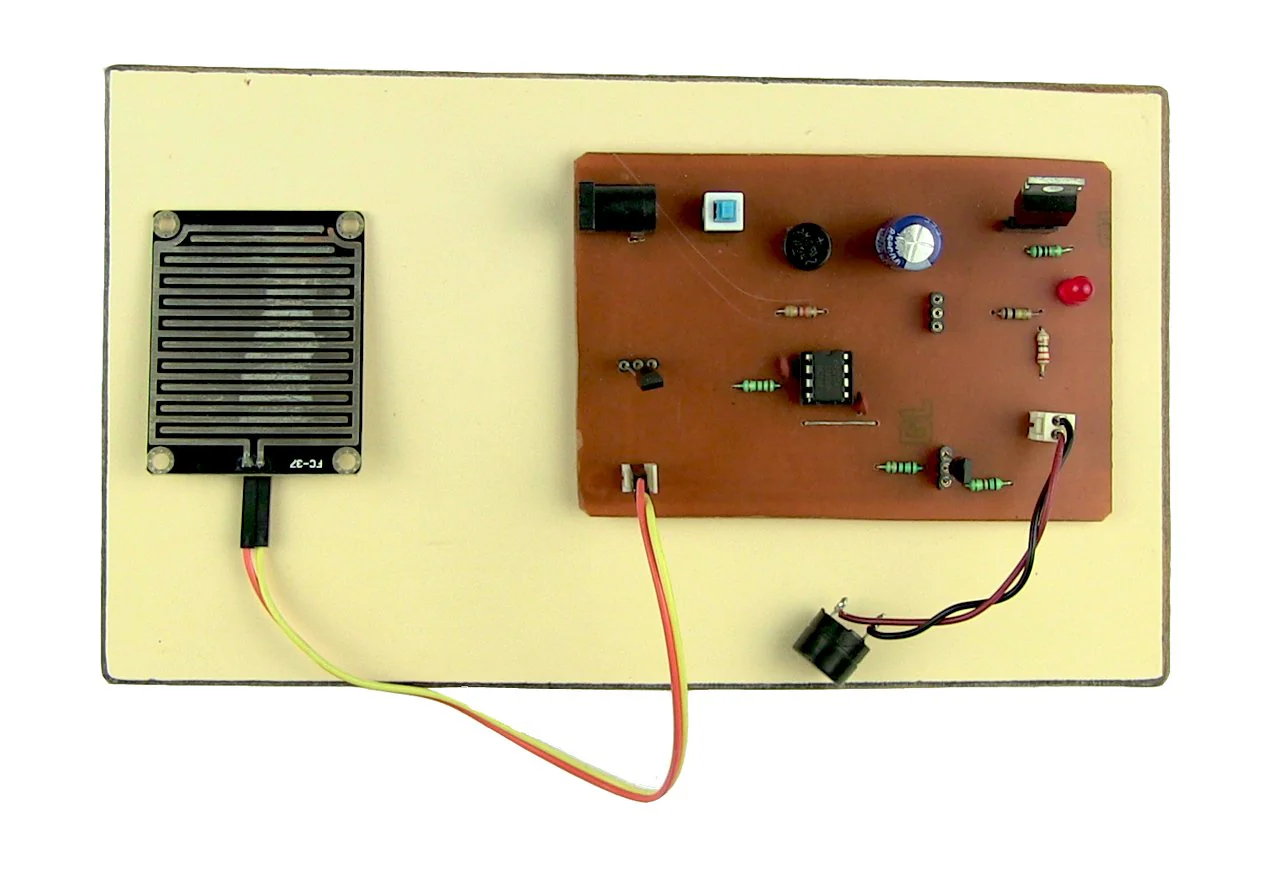

A Rain Water Alarm is a useful device designed to detect rainfall and alert the user immediately. Whether you’re indoors, inside a vehicle, or working on a farm, a rain detection alarm helps you act quickly and avoid damage or inconvenience. This project offers a practical, beginner-friendly way to build your own rain detector using basic components like a comparator and a timer IC.

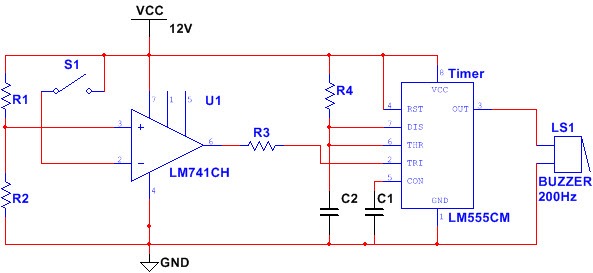

it uses two rain-sensing metal probes placed outside in the open. When raindrops connect the probes, they generate a small voltage. This signal is sent to an LM741CH op-amp, which acts as a voltage comparator.

If rain is detected, the op-amp sends a HIGH output that triggers a 555 timer IC in monostable mode. The timer immediately activates a 200Hz buzzer, producing an audible alert. This entire process happens within a second of rainfall, making it reliable and effective.

Hardware Used in Rain Water Alarm

The project includes the following components:

• LM741CH Op-Amp (comparator)

• 555 Timer IC

• Probes for rainwater detection

• Resistors: 50KΩ, 22KΩ, 10KΩ

• Capacitors: 0.01μF, 470μF

• 200Hz Buzzer

• 12V DC Power Supply

All components are easily available and affordable, making this project perfect for beginners and students.

Key Features of the Rain Water Alarm

• Immediate alert upon rainfall detection

• Works on analog electronics – no microcontroller needed

• Easy to build and test on breadboard

• Ideal for both educational and practical use

• Operates reliably in all weather conditions

• Suitable for battery or solar operation

Applications of Rain Water Alarm

• Home Alert Systems – Close windows or awnings during sudden showers

• Car Rain Detector – Warns if windows are open

• Agricultural Automation – Triggers irrigation control or alerts during rainfall

• Smart Homes – Integrate with other weather-responsive systems

• School Projects – Excellent learning tool for analog circuits
