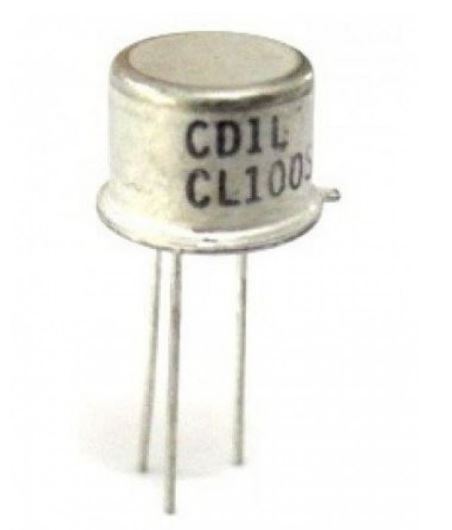

SL100/CL100 NPN General Purpose Transistor
The SL100 (or CL100) is a widely used NPN bipolar junction transistor (BJT) designed for general-purpose low-power switching and amplification applications. Housed in a TO-39 metal can package, it is known for its robustness, ease of use, and versatility in analog and digital circuits.
This transistor operates with moderate current and voltage ratings, making it suitable for interfacing with microcontrollers, driving small relays, controlling LEDs, and basic audio amplification tasks.
Technical Specifications:
-
Type: NPN Transistor
-
Maximum Collector-Emitter Voltage (V<sub>CEO</sub>): 45V
-
Maximum Collector-Base Voltage (V<sub>CBO</sub>): 60V
-
Maximum Emitter-Base Voltage (V<sub>EBO</sub>): 5V
-
Collector Current (I<sub>C</sub>): Up to 500mA
-
Power Dissipation (P<sub>D</sub>): 800mW
-
DC Current Gain (h<sub>FE</sub>): 40 to 300 (varies with operating conditions)
-
Transition Frequency (f<sub>T</sub>): Approximately 10 MHz
-
Package Type: TO-39 metal can
-
Operating Temperature Range: -65°C to +150°C
Applications:
SL100/CL100 transistors are highly versatile and used in a variety of applications including:
-
Low-power signal amplification in audio and radio frequency circuits
-
Switching small loads like relays, lamps, and LEDs
-
Driver circuits for interfacing with higher power devices
-
Educational and experimental electronics projects
-
Voltage regulation and small inverter circuits
-
Analog circuit designs requiring reliable NPN transistors
Why Choose SL100/CL100?
These transistors offer a balance of performance, robustness, and availability. Their high current gain and low noise make them ideal for signal amplification, while the metal can TO-39 package ensures good thermal management and durability. The SL100/CL100’s widespread use in teaching and prototyping environments makes them perfect for beginners and professionals alike. Their proven track record in numerous circuit designs guarantees reliability and ease of replacement.
