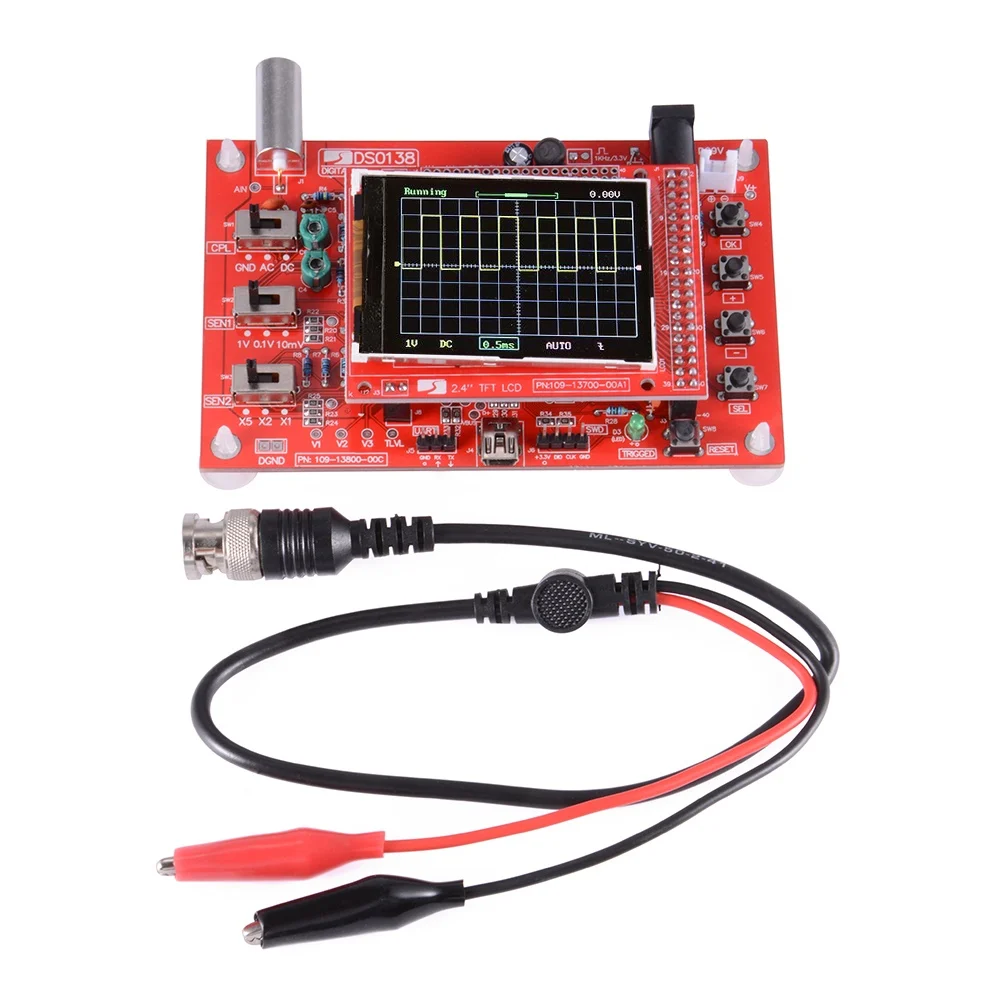

The DIY 2.4-Inch Digital Oscilloscope Kit is a hands-on learning tool designed for electronics enthusiasts, engineering students, and hobbyists who want to understand signal testing from the ground up. This compact oscilloscope kit allows users to assemble their own fully functional oscilloscope and use it to visualize and analyze waveforms from various sources.

With a 2.4-inch TFT LCD display, this oscilloscope delivers clear and colorful signal readings. It supports basic features such as signal frequency display, waveform capture, adjustable time base, and voltage scale. Despite its compact size, the oscilloscope is capable of measuring analog signals up to 200 kHz bandwidth, making it useful for many low- to mid-frequency applications.

The kit includes all necessary components—PCB, resistors, capacitors, display module, buttons, and probes—so you can start building right out of the box. Detailed assembly instructions are often provided, helping users practice soldering and component identification while learning the principles behind signal measurement and waveform visualization.

Additionally, this oscilloscope runs on a 9V DC power supply, and its portable form factor makes it suitable for field work or bench-top diagnostics. After assembly, you can use it to test sensors, microcontroller outputs (such as PWM), audio signals, and other low-frequency analog circuits.

Key Features

• 2.4-inch TFT LCD for clear waveform display

• Bandwidth up to 200 kHz

• DIY soldering and assembly kit

• Portable and battery-compatible design

• Includes test probes and full component set

Applications

• Signal visualization and testing

• Educational kits and practical electronics training

• Sensor and circuit debugging

• Arduino and embedded system waveform analysis

• Hands-on learning for STEM students
