5-Channel Flame Sensor Module

5-Channel Flame Sensor Module – Flame Detection from All Directions

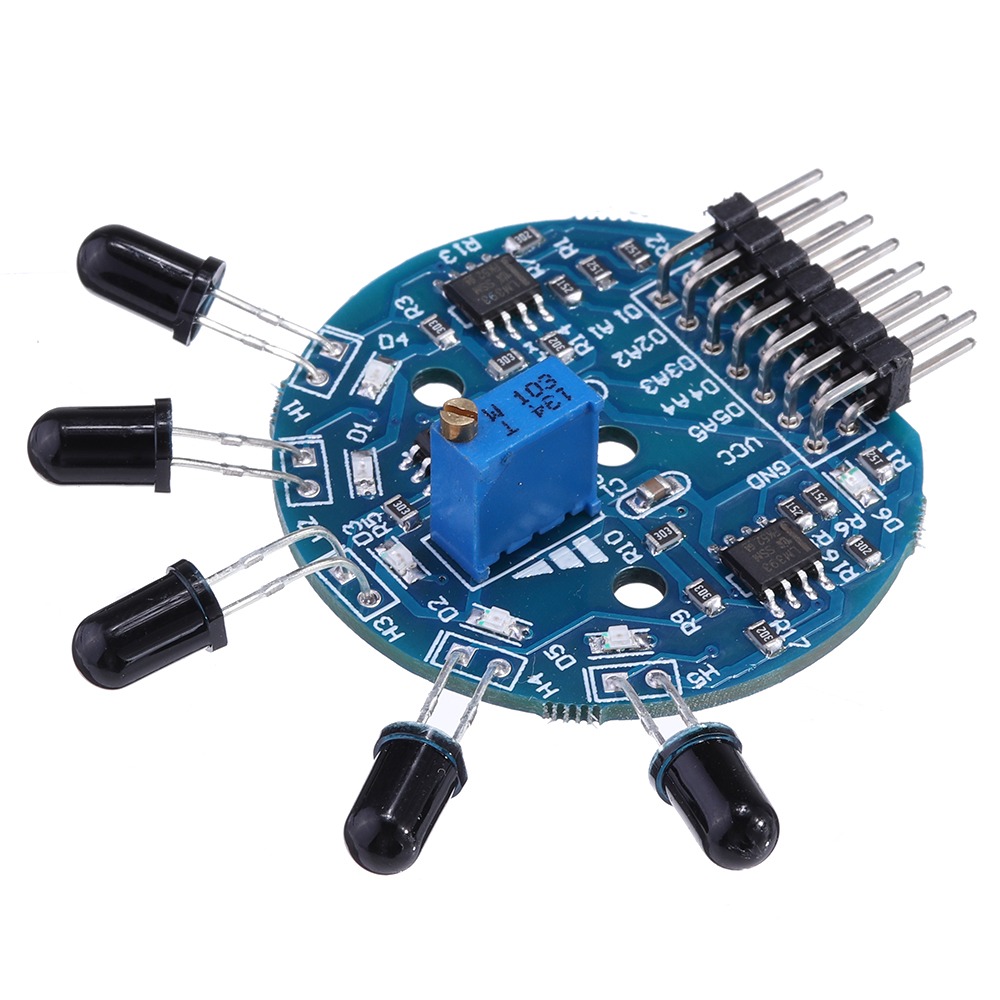

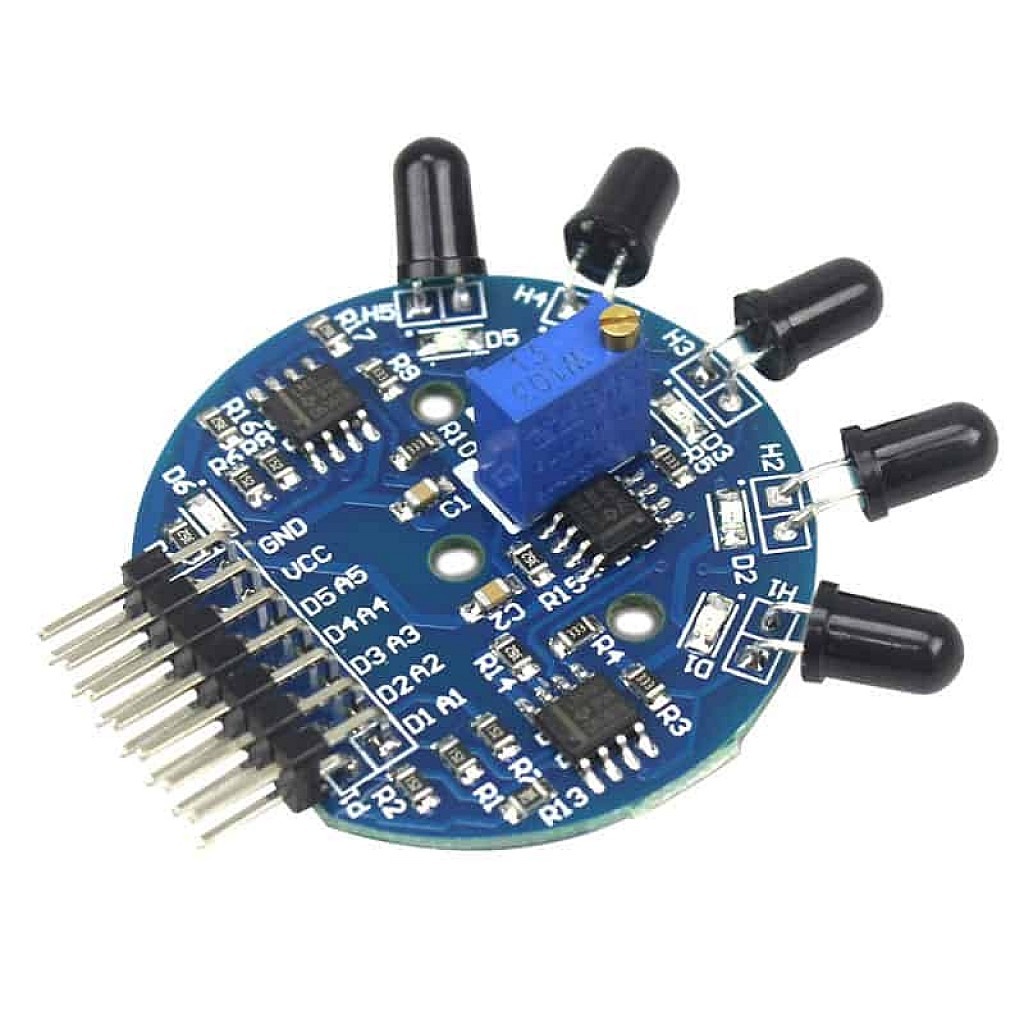

The 5-Channel Flame Sensor Module is a flame detection device capable of identifying fire sources using five infrared (IR) sensors arranged in a circular layout. This powerful module offers 360-degree flame detection, making it an ideal choice for fire-fighting robots, safety alarms, and IoT-based fire detection systems.

Each of the five sensors is tuned to detect flame-emitted IR light in the 760 nm to 1100 nm range, allowing accurate and fast fire detection. The sensor module provides both digital and analog outputs, giving users the flexibility to detect fire presence or measure intensity.

Key Features of 5-Channel Flame Sensor Module

1. 360° Flame Detection
   Detect flames from all directions using five IR sensors positioned at 30° angles.

2. Dual Output – Analog & Digital

   • AO (Analog Output): Indicates flame intensity

   • DO (Digital Output): Triggered when flame threshold is reached

3. High Sensitivity Infrared Sensors
   Detects IR radiation in the range of 760–1100 nm

4. Adjustable Sensitivity Per Channel
   Each channel has a separate potentiometer to fine-tune flame detection

5. LM393 Comparator ICs
   Onboard dual comparators offer fast response time and accurate signal conversion

6. Power Supply Compatibility
   Operates on 3.3V to 5V, suitable for Arduino, ESP32, Raspberry Pi, and more

7. Visual LED Indicators
   LEDs light up to indicate flame detection per sensor

8. Flame Detection Range
   Detects flame sources up to 100 cm away depending on size and conditions

Image Alt Tag Suggestions:

• alt="5-Channel Flame Sensor Module for flame detection"

• alt="IR flame sensor module with analog and digital outputs"

Applications of the 5-Channel Flame Sensor Module

• Fire-fighting and flame-following robots

• Industrial fire detection systems

• Smart home fire alarms

• Flame-tracking security systems
