Adjustment method: first correct input power (between 4.5-50V) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
Input: IN+ input positive IN- input negative
Output: OUT+ output positive OUT- output negative
Static power consumption is only about 6mA.
Connection: Welding, plus pin can be directly soldered after the PCB.
Short circuit protection: current limiting, thermal protection, self-recovery.
Non-isolated step-down (BUCK) switching regulator.
Short circuit protection: Current limiting, self-recovery
Potentiometer adjustment direction is as Clockwise (increase) and Anti-clockwise (decrease)
Non-synchronous rectification
Sale!

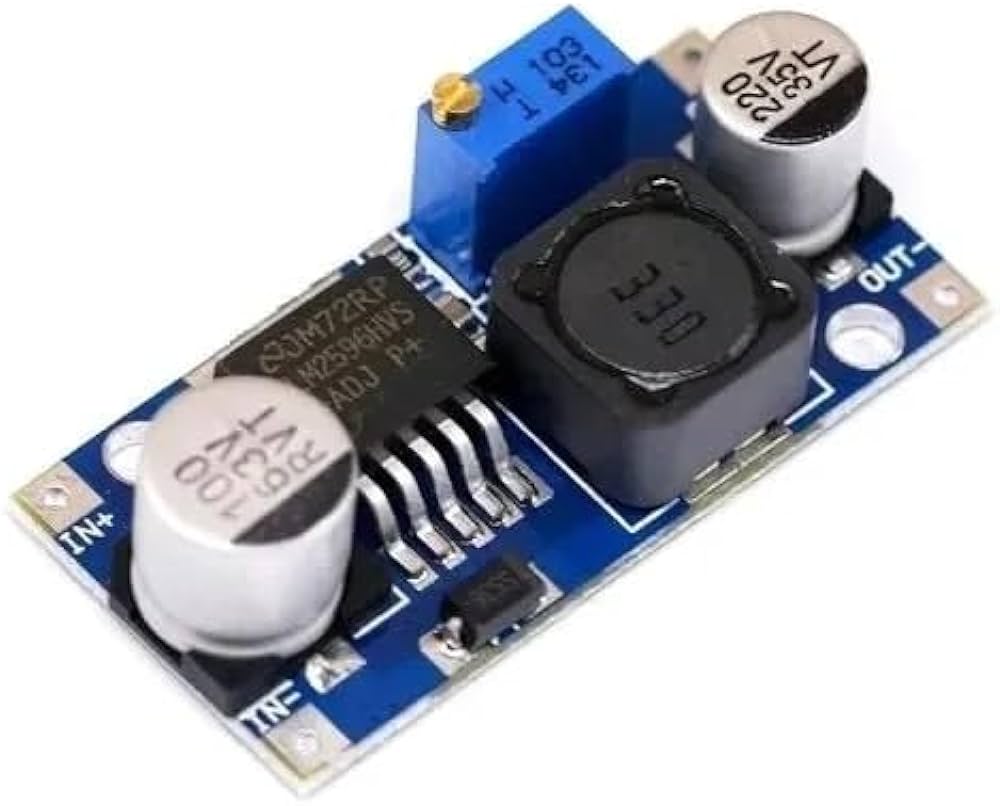

DC-DC Converter 4.5-50V to 3-35V Adjustable Step Down Power Module (LM2596 HV)
₹300.00 ₹250.00
It is LM2596 HV DC-DC Buck Converter with voltage rating 4.5-50V to 3-35V. This step down power module is adjustable with a potentiometer.
Availability: 50 in stock
Weight | 0.2 kg |
---|
Be the first to review “DC-DC Converter 4.5-50V to 3-35V Adjustable Step Down Power Module (LM2596 HV)” Cancel reply
