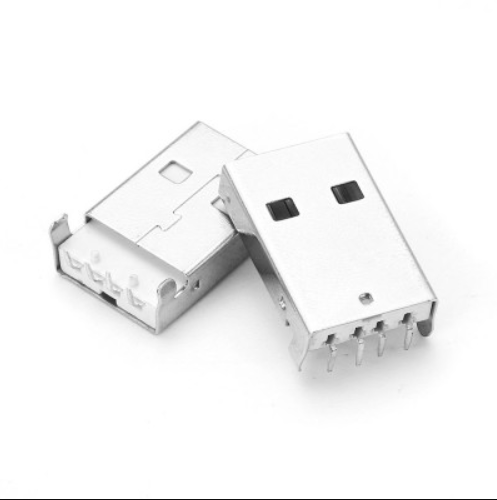

This USB Type A male Connector is a Right-Angle Connector. It is of USB 2.0 Type A. The connector has 2 mounting points on side, and so it makes a solid mounting on any board. It has 4 pinouts, 2 for Data, GND, and Vcc.
USB 2.0 Type A Male Connector
Has mounting points on both side for mounting on PCB.
Good quality socket
- High transmission speed.
- Connector Type : USB 2.0
- Connector : USB Type A
- Voltage Rating (V) : 250V AC
- Current Rating (A) : 1.5
- Transmission Speed : 5 Gbits/s
- Contact Material : Copper Alloy, Selective Gold Plated
- Insulation Material : PBT UL 94V-0
- Material : Metal and plastic
- Contact Resistance : 30m
- Insulation Resistance (M) : 1000
- Operating Temperature Range (C) : -40 to 60
- Durability : 1500 Cycles
- Insertion Force (N) : 35
- Extraction Force (N) : 10
- Length (mm) : 20
- Width (mm) : 12
- Height (mm) : 6
- Weight (gm) : 1
* Product Images are shown for illustrative purposes only and may differ from actual product.
- 1 x USB Male Connector (2pcs).
